Annual Dialysis Data Report 2016, JSDT Renal Data Registry

  • 1, 2Email author,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1,
  • 1 and
Renal Replacement Therapy20184:45

https://doi.org/10.1186/s41100-018-0183-6

  • Received: 6 August 2018
  • Accepted: 25 September 2018
  • Published:

Abstract

The annual survey of The Japanese Society for Dialysis Therapy Renal Data Registry (JRDR) was conducted for 4396 dialysis facilities at the end of 2016, among which 4336 facilities (98.6%) responded. The response rate of the 2016 survey was comparable with the past, even though it was the second year after the new anonymization method. The number of chronic dialysis patients in Japan continues to increase every year; it has reached 329,609 at the end of 2016. The mean age was 68.15 years. The prevalence rate was 2597 patients per million population. Diabetic nephropathy was the most common primary disease among the prevalent dialysis patients (38.8%), followed by chronic glomerulonephritis (28.8%) and nephrosclerosis (9.9%). The rate of diabetic nephropathy and nephrosclerosis has been increasing year by year, whereas that of chronic glomerulonephritis was declining. The number of incident dialysis patients during 2016 was 39,344; it has remained stable since 2008. The average age was 69.40 years, and diabetic nephropathy (43.2%) was the most common cause in the incident dialysis patients. These patients caused by diabetes did not change in number for recent several years. Thirty-one thousand six hundred eight patients died in 2016; the crude mortality rate was 9.7%. The patients treated by hemodiafiltration (HDF) have been increasing rapidly from the revision of medical reimbursement for HDF therapy in 2012. It has attained 76,836 patients at the end of 2016, which were 21,503 greater than that in 2015. The number of peritoneal dialysis (PD) patients was 9021 in 2016, which had been slightly decreasing since 2014; 20.3% of PD patients treated in the combination of hemodialysis (HD) or HDF therapy. Six hundred thirty-five patients were treated by home HD therapy at the end of 2016; it increased by 63 from 2015.

Trial registration

JRDR was approved by the ethical committee of JSDT and has been registered in “University hospital Medical Information Network (UMIN) Clinical Trials Registry” as an approved number of UMIN000018641 on August 8, 2015.

Part I. JRDR 2016 annual data report: general remarks

Introduction

The Japanese Society for Dialysis Therapy (JSDT) has been conducting a survey on the status of chronic dialysis therapy in Japan at the end of every year since 1968; this survey, known as the JSDT Renal Data Registry (JRDR), covers almost all dialysis facilities throughout the country [1, 2]. Although participating facilities are not compensated, the nearly 100% response rate means that the JSDR is largely complete and literally unbiased representation of the status of chronic dialysis in Japan, making it rather rare in the world.

Until the 2013 JRDR results were reported, there were two types of JRDR reports: prompt (unfixed) data of collected results reported at the annual meeting of the JSDT held every June and defined (fixed) data subjected to subsequent data cleaning. The prompt (unfixed) data were used to prepare “An Overview of Regular Dialysis Treatment in Japan, the Illustrated Report,” which was distributed at the annual meeting. The defined (fixed) data were used to produce “An Overview of Regular Dialysis Treatment in Japan, the CD-ROM Report,” which was distributed at the end of the year to all member facilities of the JSDT or other facilities that participated in the JRDR. In addition, a status report for the second preceding year was prepared from the defined (fixed) data and published every January in Journal of the Japanese Society for Dialysis Therapy. The results in this report served as the society’s official numbers, although the numbers in the Illustrated Report were cited far more often in various settings. In addition, in the 2010s, the increase in the number of dialysis patients has slowed; in fact, the number is predicted to begin decreasing within a few years [3]. This meant that the defined (fixed) data would sometimes indicate that the numbers of dialysis patients were still increasing even if they had decreased in the prompt (unfixed) data, which could easily cause major confusion. Thus, starting with the 2014 JRDR results, the production of the Illustrated Report from the prompt (unfixed) data was discontinued, and both the Illustrated Report and CD-ROM are now prepared from the defined (fixed) data instead [4]. The Illustrated Report is now distributed at the end of the year to each dialysis facility, with the CD-ROM included in its back cover. (For reasons relating to administrative procedures, “An Overview of Regular Dialysis Treatment in Japan, the CD-ROM Report” for 2016 was sent separately.)

In December 2014, the Ethical Guidelines for Medical and Health Research Involving Human Subjects, which was issued by the Ministry of Health, Labour and Welfare and the Ministry of Education, Culture, Sports, Science, and Technology, demanded that all academic societies strictly follow ethical considerations and protect personal information in epidemiological research [5]. The JSDT has also changed its survey methods based on these guidelines; starting with the 2015 JRDR, anonymity has been enhanced to ensure the protection of personal information. Furthermore, the JRDR was reviewed in March 2015 by an ethics committee (JSDT Ethics Committee approval no. 1) to ensure ethical validity, fairness, and transparency of the survey. Following the conclusion of the abovementioned ethics review, the revised survey methods were then published in the UMIN (University hospital Medical Information Network) Clinical Trials Registry (UMIN000018641), and the review results were posted on the JSDT website [6]. Enhanced anonymization consisted of a system wherein patient information was converted to a random string of alphanumeric characters using a special algorithm, and the correspondence tables for retrieving the real names of patients were held by dialysis facilities; hence, even the JSDT main office could not retrieve patient information. The 2016 JRDR, which represented the second year of complete anonymization, involved two major issues: whether the facilities would be able to properly retrieve the anonymously distributed data and whether the secretariat would be able to properly compare the anonymized 2015 and 2016 data. Fortunately, the response rate was nearly identical to that in previous years, and we were able to publish the Illustrated Report and this Annual Report just as in previous years. We were reminded of the sincere attitude toward dialysis treatment exhibited by all those involved in it in Japan, as well as their trust in and expectations of the JSDT.

Survey methods

Sending and collecting surveys

There are two types of JRDR annual surveys: facility surveys that include questions about the numbers of dialysis consoles, staff, and patients; and patient surveys that include questions about dialysis prescriptions, laboratory data, and outcome factors for individual patients at dialysis facilities. For the 2016 JRDR, USB flash drives containing facility surveys and patient surveys (the latter of which contained anonymized patient information) prepared in Excel were mailed to dialysis facilities throughout Japan in December 2016. The patient surveys included patient information that had been registered in the previous year and anonymized using the method adopted in the previous year. Each dialysis facility used a USB flash drive containing correspondence tables that had been mailed to them in 2015 in order to retrieve the patients’ real names so that data such as the survival, death, or transfer of patients could be updated. Furthermore, new patients were registered, and the USB flash drive with the correspondence table was once again used to anonymize the information once entries for all patients were complete. After the anonymization, patient information in the surveys (name, sex, date of birth, etc.) was converted into random strings of alphanumeric characters of a fixed length. Each dialysis facility returned only the USB flash drive with the survey to the JSDT main office after confirming that patients’ personal information had been completely anonymized. Paper-based surveys, which had been used until 2014, were discontinued in 2015; therefore, paper-based surveys were used only for certain facilities. The initial deadline for data was January 31, 2017; however, facilities that had not responded by then were urged to participate, and the final responses were collected on June 30. These data were incorporated into the 2016 year-end data.

Survey items

The items listed below were investigated in the 2016 JRDR. As described above, the 2016 JRDR was the second survey to incorporate enhanced anonymization. Hence, new topical survey items were not incorporated, and the contents were nearly identical to those of the 2014 and 2015 JRDR. In addition, all survey items used until 2016 are included in the members-only pages of the JSDT website (http://www.jsdt.or.jp/).

Facility survey

  1. 1.
    Overview and scope of facilities
    • Name and contact numbers (TEL, FAX) of facility, as well as the year and month when the facility started providing dialysis treatment

    • Dialysis capabilities: Capacity for simultaneous hemodialysis (HD) treatments, maximum capacity for HD treatments, and number of dialysis consoles

    • Number of workers involved in dialysis treatment (e.g., doctors, nurses, clinical engineers, nutritionists, case workers)

    • Number of medical dialysis specialists qualified by JSDT


  2. 2.
    Patient dynamics
    • Number of prevalent dialysis patients at end of 2016 (number of patients by treatment modality, inpatient/outpatient)

    • Number of dialysis patients undergoing nighttime dialysis in 2016

    • Number of incident dialysis patients in 2016 (number of incident HD(F) and PD patients)

    • Number of deceased patients during 2016


  3. 3.
    Dialysis fluid quality management
    • Use of endotoxin retentive filter (ETRF)

    • Dialysis fluid sampling status and sampling site of dialysis fluid during testing

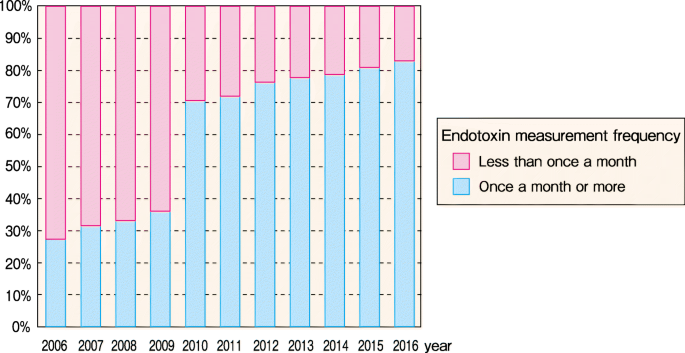

    • Frequency for measuring endotoxin (ET) concentration in dialysis fluid and ET concentration in dialysis fluid

    • Frequency for measuring total viable microbial count (TVC) in dialysis fluid, sampling volume for TVC, cultivation medium for TVC, and TVC in dialysis fluid



Patient survey

  1. 1.
    Patient personal information
    • Sex, date of birth, year and month of start of dialysis, year and month of transfer from another hospital, primary disease, residence (prefecture), dialysis modality, month of transfer (destination facility code), outcome category, outcome date (transfer, death, dropout, or transplantation) (destination facility code), month of death, cause of death, dates of changes, change codes, status of combined therapies involving PD with HD or HDF, etc., PD experience, and number of kidney transplants


  2. 2.
    HD/HDF therapy conditions
    • Frequency of dialysis session per week, dialysis time per session, and blood flow rate

    • HDF: dilution methods, substitution fluid volume per session

    • Body height, pre- and post-dialysis body weight, pre-dialysis systolic blood pressure, pre-dialysis diastolic blood pressure, and pre-dialysis pulse rate


  3. 3.
    Laboratory findings
    • Pre- and post-dialysis serum urea nitrogen (UN), pre- and post-dialysis serum creatinine concentration, pre-dialysis serum albumin concentration, pre-dialysis serum C-reactive protein (CRP) concentration, pre-dialysis serum calcium concentration, pre-dialysis serum phosphorus concentration, serum parathyroid hormone (PTH) assay method, PTH level (intact or whole PTH), pre-dialysis hemoglobin concentration, serum total cholesterol concentration (total cholesterol), and serum high-density-lipoprotein-cholesterol concentration (HDL-C)


  4. 4.
    Outcome factors
    • Antihypertensive drug use, smoking, history of diabetes, history of myocardial infarction, history of cerebral hemorrhage, history of cerebral infarction, limb amputation, history of proximal femur fracture, history of encapsulating peritoneal sclerosis (EPS)


  5. 5.
    Peritoneal dialysis (PD) survey
    • Therapeutic history: Current PD dialysis vintage, number of months in which PD was performed in 2016

    • Peritoneal function: Implementation of peritoneal equilibration test (PET), 4-h creatinine concentration dialysate/plasma ratio in PET (PET Cr D/P ratio)

    • Dialysis prescription: Type of PD fluid, volume of PD fluid per day, PD treatment time per day, daily urine volume, mean fluid removal volume per day, Kt/V by residual kidney function (residual kidney Kt/V), Kt/V by PD (PD Kt/V)

    • Dialysis method: Use of automated peritoneal dialysis (APD) machine, changing maneuver of PD fluid

    • Infectious disease: Numbers of peritonitis during 2016 (peritonitis frequency), numbers of exit-site infections during 2016



Methods for publishing JRDR results and an overview of this report

Until the 2013 edition, the JRDR annual report was published in Japanese in every January issue of the Journal of the Japanese Society for Dialysis Therapy, and a translated version was published in Therapeutic Apheresis and Dialysis (TAD). In TAD, survey results were mostly reported in tables owing to page limitations, whereas the Illustrated Report, as per its name, provided an explanation through figures. PDFs of TAD papers and the Illustrated Reports, as well as their figures (in the form of PowerPoint files), can be downloaded from the JSDT website. However, the figures in the Illustrated Reports were used more often. In contrast, countries other than Japan have been requesting that the results of the JRDR be published in a form that people worldwide may easily use. Because of such circumstances, the English-language annual report has been published in Renal Replacement Therapy (RRT) since the report for 2014 [7, 8]. We expect that the PDF of the English-language annual report, an English translation of the figures as a PowerPoint file, and an Excel file of the tables, will be available to the world from the English-language website of the JSDT.

Part II. JRDR 2016 annual data report: results and discussion

Chapter 1: Basic demographics

Facility dynamics

The 2016 JRDR annual survey was conducted at 4396 facilities nationwide, and responses were obtained from 4336 facilities. The number of responding facilities decreased in 2015 (by 9 facilities, or − 0.2%) but increased again in 2016 (by 15 facilities, or + 0.3%). Although these are strictly numbers of responses rather than response rates, there was a concern that the enhanced anonymization and accompanying discontinuation of paper-based surveys starting from the 2015 JRDR would result in a decreased response rate and the consequent underestimation of the number of dialysis facilities and patients. However, the response rate for facility surveys was 98.6%, whereas patient surveys were able to be collected from 95.2% of all facilities; thus, the response rates were nearly identical to those from previous years. Therefore, a decrease in the number of facilities responding to the surveys does not necessarily mean a substantial decrease in the actual number of dialysis facilities. However, the increase in the number of dialysis patients has recently slowed, and future trends are therefore being noted (Table 1). The 4336 facilities that responded had 135,211 dialysis consoles (an increase of 1673 from the previous year), a simultaneous dialysis treatment capacity of 133,500, and a maximum dialysis treatment capacity of 444,192. Compared to the figures at the end of 2015, these figures represented increases of 1.3, 1.5, and 1.3%, respectively (Tables 1 and 2).
Table 1

Summary of chronic dialysis therapy in Japan, 2016

Number of surveyed facilities

4396 facilities

(Increase of 16 facilities, 0.4% increase)

 Number of responded facilities

4336 facilities

(Increase of 15 facilities, 0.3% increase)

 Capacity

Number of bedside consoles

135,211 units

(Increase of 1673 units, 1.3% increase)

Capacity for simultaneous HD treatments

133,500 treatments

(Increase of 1986 patients, 1.5% increase)

Maximum capacity

444,192 patients

(Increase of 5801 patients, 1.3% increase)

Prevalent dialysis patients

329,609 patients

(Increase of 4623 patients, 1.4% increase)

Outpatients

Inpatients

Total

 Hemodialysis

Hemodialysis (HD)

215,858

(72.1)

25,827

(85.3)

241,685

(73.3)

Hemodiafiltration (HDF)

72,959

(24.4)

3877

(12.8)

76,836

(23.3)

Hemofiltration (HF)

19

(0.0)

7

(0.0)

26

(0.0)

Blood adsorption dialysis

1360

(0.5)

46

(0.2)

1406

(0.4)

Home hemodialysis

633

(0.2)

2

(0.0)

635

(0.2)

 Peritoneal dialysis (PD)

PD only

6722

(2.2)

468

(1.5)

7190

(2.2)

PD + HD 1/week

1521

(0.5)

39

(0.1)

1560

(0.5)

PD + HD 2/week

165

(0.1)

4

(0.0)

169

(0.1)

PD + HD 3/week

33

(0.0)

5

(0.0)

38

(0.0)

PD + HD other frequencies

61

(0.0)

3

(0.0)

64

(0.0)

Subtotal

8502

(2.8)

519

(1.7)

9021

(2.7)

 Total

299,331

(100.0)

30,278

(100.0)

329,609

(100.0)

 Per million of general population

2596.7 patients

(Increase of 39.7 patients)

 Patients count in the night shift

32,431 patients

Incident dialysis patients

39,344 patients

(Decrease of 118 patients, 0.3% decrease)

 Incident hemodialysis patients (including HDF)

37,398 patients

 Incident peritoneal dialysis patients

1946 patients

Deceased patients

31,790 patients

(Increase of 722 patients, 2.3% increase)

The above data were obtained from the facility survey

PD + HD patients patients treated by the combination of PD and HD, HDF, hemoadsorption, or hemofiltration (excluding those who underwent only peritoneal lavage)

Table 2

Changes in the number of dialysis consoles, 1966–2016



1966

1968

1969

1970

1971

1972

1973

1974

1975

1976

1977

1978

1979

1980

1981

1982

1983

Number of bedside consoles

48

105

206

606

1575

3022

4986

5515

7246

9204

10,545

12,569

16,519

18,963

21,032

22,939

24,474

Year/year

57

101

400

969

1447

1964

529

1731

1958

1341

2024

3950

2444

2069

1907

1535



1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

Number of bedside consoles

26,558

28,715

30,846

33,527

36,447

34,099

40,723

45,682

49,650

53,262

58,561

59,715

63,742

66,880

69,733

75,448

79,709

Year/year

2084

2157

2131

2681

2920

-2348

6624

4959

3968

3612

5299

1154

4027

3138

2853

5715

4261



2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016



Number of bedside consoles

83,914

89,070

92,710

97,366

100,552

104,382

108,583

111,998

114,979

118,622

121,863

125,003

128,150

131,555

133,538

135,211



Year/year

4205

5156

3640

4656

3186

3830

4201

3415

2981

3643

3241

3140

3147

3405

1983

1673



The low response rate in 1989 caused a dip in facility or dialysis machine numbers. The above data were obtained from the patient survey

Abbreviations: year/year compared with the previous year

Patient dynamics

Based on the facility surveys, a total of 329,608 patients were undergoing chronic dialysis therapy at the end of 2016; this number represents the prevalence of chronic kidney disease patients on dialysis therapy. The number of dialysis patients increased by approximately 10,000 annually through 2005, but this rate of increase has been slowing in recent years. At the end of 2014, the number of dialysis patients had increased by 6010 from the previous year; the number had increased by 4538 at the end of 2015 and by 4623 in 2016 (Fig. 1, Additional file 1: Table S1). In the figure, the decrease in the number of patients at the end of 1989 is the apparent effect of the unusually low 86% survey response rate that year [2]. In 2012, Nakai et al. [3] predicted that the number of future dialysis patients would decrease after reaching a peak of approximately 348,000 in 2021. The number of dialysis patients per million of the Japanese population is 2596.7, an increase of 39.7 patients from the previous year; this finding means that there is 1 dialysis patient per 385.1 Japanese citizens (Table 3). The population of Japan has been decreasing since 2011; thus, the percentage of dialysis patients in the population has increased yearly. According to the United States Renal Data System, Taiwan has the highest number of dialysis patients per million population worldwide, followed by Japan [9]. Meanwhile, the count of incident dialysis patients represents the incidence of chronic kidney disease patients on dialysis therapy. Although the count of incident dialysis patients showed an upward trend until 2008, it began to decrease in 2009. Since then, faint fluctuations in the patient count have been observed, although the rate has remained largely constant. However, the count of incident dialysis patients in 2015 increased by 1135 from the previous year to 39,462, exceeding 39,000 patients for the first time, and stood at 39,344 in 2016 (Fig. 2, Additional file 2: Table S2). In contrast, the annual count of deceased patients increased every year until 2011 but has since remained mostly constant. In 2015, the deceased patient count was 31,068 and that in 2016 was 31,790 (Fig. 2, Additional file 2: Table S2). In general, the number of patients in a given year should be equal to the number of patients in the previous year plus the incident patient count minus the deceased patient count. However, patients who discontinue dialysis because of a transplant are not counted; in addition, the deceased patient count could be underestimated, whereas the incident patient count could be overestimated. Thus, the numbers do not add up exactly.
Fig. 1
Fig. 1

Changes in the number of prevalent dialysis patients, 1968–2016. *The low response rate in 1989 caused a dip in patient numbers

Table 3

Adjusted prevalent dialysis patient counts (pmp), 1983–2016



1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

Adjusted prevalent dialysis patients (pmp)

443.7

497.5

547.8

604.4

658.8

721.1

790.0

835.7

937.6

995.8

1076.4

1149.4

1229.7

1328.4

1394.9

1465.2

1556.7

Year/year

53.8

50.3

56.6

54.4

62.3

68.9

45.7

101.9

58.2

80.6

73.0

80.3

98.7

66.5

70.3

91.5



2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

Adjusted prevalent dialysis patients (pmp)

1624.1

1721.9

1801.2

1862.7

1943.5

2017.6

2069.9

2154.2

2219.6

2279.5

2329.1

2385.4

2431.1

2470.1

2521.6

2557.0

2596.7

Year/year

67.4

97.8

79.3

61.5

80.8

74.1

52.3

84.3

65.4

59.9

49.6

56.3

45.7

39.0

51.5

35.4

39.7

The low response rate in 1989 caused a dip in facility or dialysis machine numbers. The above data were obtained from the patient survey

Abbreviations: pmp per million population, year/year compared with the previous year

Fig. 2
Fig. 2

Incident and deceased dialysis patient counts, 1983–2016

Patient count by dialysis modality and prefecture

Starting with the 2015 JRDR, the tabulation method was changed to a method focusing on modalities such as HDF, the use of which has been increasing rapidly. The percentage of each modality was 73.3% for HD, 23.3% for HDF, 0.4% for hemofiltration (HF) and hemoadsorption dialysis, 2.7% for PD, and 0.2% for home hemodialysis (HHD) (Table 1). The total percentage of home dialysis (PD plus HHD) in Japan is 2.9%, which is the lowest in the developed world [9]. The use of HDF, particularly on-line HDF, has dramatically increased since the 2012 revision of the medical reimbursement system; the total number of patients using HDF at the end of 2016 was 76,836, an increase of 21,503 from 2015. The number of PD patients was 9021, which represented a decrease of about 300 from 9322 patients in 2015. About 20.3% PD patients underwent combined therapy with HD, and this percentage has remained largely constant for the past 5 years. The number of HHD patients was 635, which was 63 patients more than that in 2015; although this represents a large rate of increase, the percentage of HHD among all modalities remains small. The number of nighttime dialysis patients was approximately 41,000–42,000 until the 2014 JRDR, but it decreased to 33,370 in 2015 and to 32,431 in 2016. This decrease may have been due to the addition of “Dialysis during hours recognized by insurance (starting after 5:00 pm or ending after 9:00 pm)” to the definition of nighttime dialysis in the 2015 JRDR. The total count of incident dialysis patients was 39,344; of these patients, 95.1% began HD or similar modalities, whereas 4.9% began PD (a decrease from 5.6% in 2015).

Until 2014, the numbers of chronic dialysis patients by prefecture were categorized by daytime dialysis, nighttime dialysis, HHD, and PD. However, since the 2015 JRDR, the numbers of chronic dialysis patients by prefecture are now tabulated by detailed modality.

The tabulation of prefectures represents the locations of the facilities rather than those of the patients and thus does not strictly represent patient dynamics by prefecture. There are pronounced differences between regions in the number of patients per modality and per million in the population [10]. These regional differences arise from a massive number of factors that are interrelated in a complex manner; therefore, comparisons of prefectures require great care (Table 4).
Table 4

Prevalent dialysis patient counts, by modality and prefecture, 2016

Prefecture

Number of surveyed facilities

Number of responded facilities

Hemodialysis

Peritoneal dialysis

Total

Per million of general population

Hemodialysis

Hemodiafiltration

Hemofiltration

Blood adsorption filtration

Home hemodialysis

PD only

PD + HD 1/week

PD + HD 2/week

PD + HD 3/week

PD + HD other frequencies

Hokkaido

260

257

10,494

4489

0

77

9

263

91

6

2

1

15,432

2883.4

Aomori

40

40

2170

1317

0

3

2

54

11

1

0

1

3559

2752.5

Iwate

44

44

2747

255

0

15

0

86

9

0

0

0

3112

2454.3

Miyagi

60

60

4318

1155

0

24

0

40

8

2

1

0

5548

2381.1

Akita

43

43

1558

510

0

5

2

62

3

2

0

0

2142

2120.8

Yamagata

36

36

1784

753

0

5

13

43

10

6

1

1

2616

2350.4

Fukushima

66

64

3713

1074

0

12

0

94

34

5

1

0

4933

2595.0

Ibaraki

87

87

6187

1580

0

80

11

64

16

0

4

0

7942

2733.9

Tochigi

78

77

4985

1011

0

12

2

87

11

0

0

1

6109

3107.3

Gunma

64

64

4478

1372

0

2

14

45

15

0

0

0

5926

3012.7

Saitama

189

188

12,424

5008

1

59

72

237

72

9

1

0

17,883

2453.4

Chiba

152

147

10,621

3899

0

33

9

183

64

4

2

2

14,817

2376.0

Tokyo

427

421

21,609

8519

8

156

87

797

249

14

3

12

31,454

2308.7

Kanagawa

260

257

15,607

4516

0

73

31

557

63

2

1

0

20,850

2279.9

Niigata

55

54

4398

543

0

23

1

119

18

0

0

1

5103

2232.3

Toyama

42

42

2005

432

0

12

2

85

19

5

0

0

2560

2412.8

Ishikawa

38

38

2203

378

0

22

4

68

8

0

0

0

2683

2331.0

Fukui

25

24

1168

491

0

6

3

77

20

7

2

1

1775

2269.8

Yamanashi

32

31

1451

629

0

3

2

42

14

1

0

1

2143

2581.9

Nagano

73

72

3460

1661

2

12

12

91

17

5

0

0

5260

2519.2

Gifu

71

71

4095

779

0

32

24

82

9

2

0

0

5023

2484.2

Shizuoka

126

125

7347

3306

0

35

16

115

23

3

3

1

10,849

2941.7

Aichi

195

195

14,501

2935

0

93

48

582

89

3

0

0

18,251

2431.2

Mie

53

50

3655

437

0

26

5

57

16

0

0

0

4196

2320.8

Shiga

40

40

2356

634

0

15

30

120

27

0

1

0

3183

2252.7

Kyoto

80

79

4850

1397

1

53

12

161

65

3

0

2

6544

2512.1

Osaka

317

314

17,479

5213

0

140

43

472

98

9

2

2

23,458

2655.7

Hyogo

199

192

9679

3643

1

91

68

137

37

13

2

1

13,672

2476.8

Nara

46

45

2373

905

1

30

6

115

41

2

1

1

3475

2562.7

Wakayama

48

48

2560

408

0

14

23

38

4

0

0

1

3048

3195.0

Tottori

26

26

933

517

0

2

2

40

9

2

0

0

1505

2640.4

Shimane

30

30

809

736

0

2

1

51

7

3

0

1

1610

2333.3

Okayama

66

66

3354

1458

3

27

5

155

13

1

1

0

5017

2619.8

Hiroshima

100

98

4966

2328

0

28

31

218

62

43

4

2

7682

2707.8

Yamaguchi

62

59

2034

1324

0

6

1

77

27

4

1

0

3474

2492.1

Tokushima

39

39

1724

922

0

6

5

124

45

1

0

1

2828

3770.7

Kagawa

47

47

1599

814

0

15

9

149

46

4

0

0

2636

2711.9

Ehime

53

53

2215

1561

0

4

0

98

28

0

1

11

3918

2849.5

Kochi

39

37

1343

937

0

2

0

13

4

0

0

0

2299

3188.6

Fukuoka

197

194

11,996

2030

0

53

11

670

36

0

2

3

14,801

2899.9

Saga

37

37

1818

610

0

4

1

8

5

0

0

0

2446

2954.1

Nagasaki

63

62

3247

602

1

11

8

117

8

3

0

1

3998

2924.7

Kumamoto

89

88

5534

755

0

27

2

116

27

1

1

6

6469

3646.6

Oita

71

70

3233

498

6

8

4

119

34

3

1

0

3906

3367.2

Miyazaki

64

62

3299

309

0

10

0

46

2

0

0

2

3668

3346.7

Kagoshima

96

94

4328

768

2

27

1

124

25

0

0

6

5281

3226.0

Okinawa

71

69

2978

1418

0

11

3

92

21

0

0

2

4525

3144.5

Total

4396

4336

241,685 (73.3)

76,836 (23.3)

26 (0.0)

1406 (0.4)

635 (0.2)

7190 (2.2)

1560 (0.5)

169 (0.1)

38 (0.0)

64 (0.0)

329,609 (100.0)

2596.7

The above data were obtained from the facility survey. The numbers of dialysis patients were adjusted as per million population (pmp) by the annual government report. Reference [10]

Age, sex, and dialysis vintage of prevalent patients at the end of 2016

In the patient survey, the count of prevalent dialysis patients at the end of 2016 (specifically, the number of patients for whom age and sex data were listed) was 319,107; this number is 10,502 patients fewer than, or 96.8% of, the count of 329,609 from the facility surveys. The mean age of the prevalent dialysis patients was 68.15 years, which was 0.29 years higher than that in the previous year (Table 5). The mean age of men was 67.34 years, a 0.27-year increase, whereas the mean age of women was 69.61 years, a 0.33-year increase (Fig. 3, Additional file 3: Table S3). The most common age range for both men and women was 65–69 years.
Table 5

Average age of prevalent dialysis patients, 1983–2016



1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

Mean age of the prevalent dialysis patients

48.3

49.2

50.3

51.1

52.1

52.9

53.8

54.5

55.3

56.0

56.6

57.3

58.0

58.6

59.2

59.9

60.6



2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

Mean age of the prevalent dialysis patients

61.2

61.6

62.2

62.8

63.3

63.9

64.4

64.9

65.3

65.8

66.2

66.6

66.9

67.2

67.5

67.9

68.2

The above data were obtained from the patient survey

Fig. 3
Fig. 3

Prevalent dialysis patient distribution, by age and sex, 2016

The number of patients younger than 65 years has been decreasing since 2012, reflecting an increase in age among incident patients. In other words, the increase in chronic dialysis patients in Japan is the result of an increase in patients aged 65 years and older. The percentage of old-old patients (75 years and older) also increased; there were 6095 dialysis patients aged 90 years and older (Fig. 4, Additional file 4: Table S4).

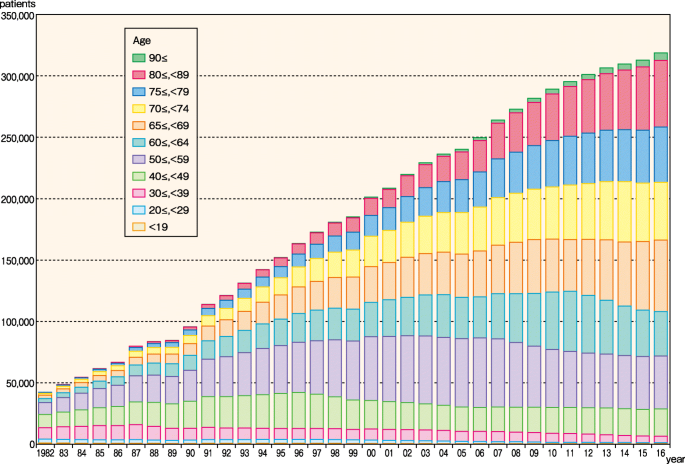

Fig. 4
Fig. 4

Prevalent dialysis patient distribution, by age, 1982–2016

Comparisons of the dialysis vintages of prevalent patients at the end of 2016 by 5-year segments showed that 47.3% of all patients had a dialysis vintage of < 5 years, whereas 26,313 patients had a dialysis vintage of at least 20 years, representing an increase of 922 patients (8.3% of all patients) over the previous year. There were 793 patients (0.2% of all patients) with a dialysis vintage of 40 years or longer (Fig. 5, Additional file 5: Table S5). The longest dialysis vintage was 48 years and 4 months.
Fig. 5
Fig. 5

Prevalent dialysis patient distribution, by dialysis vintage and sex, 2016

In all dialysis vintage segments, there were more men in terms of absolute numbers; however, the difference became smaller as the dialysis vintage lengthened. Chronic dialysis therapy was first covered by insurance in Japan in 1967; the effects of this coverage and of differences in natural history are thought to result in fluctuations in the male/female ratio. The percentage of patients with vintages < 5 years has gradually decreased every year, whereas the number of patients with long vintages has been increasing; the percentage of patients with vintages of at least 10 years has reached 27.9%. Patients with vintages of 20 years or longer accounted for < 1% of all patients at the end of 1992, but reached 8.3% at the end of 2016 (Fig. 6, Additional file 6: Table S6).

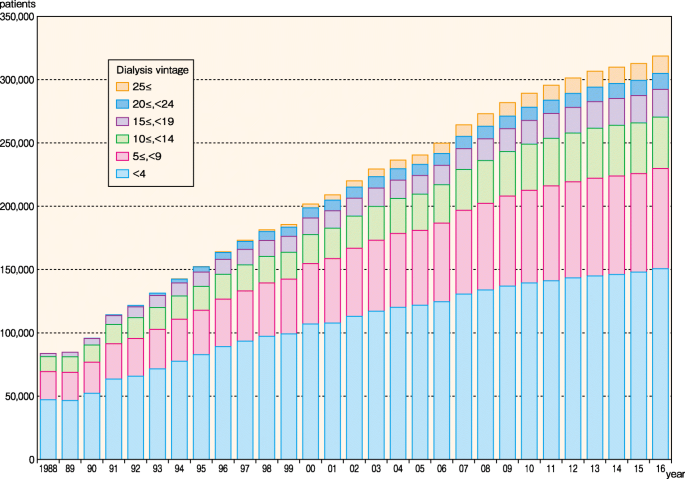

Fig. 6
Fig. 6

Prevalent dialysis patient distribution, by dialysis vintage, 1988–2016

Primary diseases in prevalent patients at the end of 2016

The most common primary disease in prevalent dialysis patients at the end of 2016 was diabetic nephropathy, followed by chronic glomerulonephritis and nephrosclerosis (38.8, 28.8, and 9.9%, respectively). However, 9.8% had an unknown primary disease (Fig. 7, Additional file 7: Table S7).
Fig. 7
Fig. 7

Prevalent dialysis patient distribution, by primary disease and sex, 2016. Abbreviations: PIH pregnancy-induced hypertension, PKD polycystic kidney disease, RPGN rapidly progressive glomerulonephritis

Diabetic nephropathy, which continued to increase in prevalence, is now the most common primary disease since supplanting chronic glomerulonephritis in the 2011 JRDR. Although the prevalence of diabetic nephropathy has continued to increase since 2011, the pace of this increase has slowed somewhat in recent years (Fig. 8, Additional file 8: Table S8). The percentage of chronic glomerulonephritis has been decreasing linearly, whereas the percentages of nephrosclerosis and unknown primary disease have continued to increase. In addition, the percentages of primary diseases such as polycystic kidney disease, chronic pyelonephritis, lupus nephritis, and rapidly progressive glomerulonephritis have remained at approximately the same levels as in previous years.
Fig. 8
Fig. 8

Prevalent dialysis patient distribution, by primary disease, 1983–2016. Abbreviations: PKD polycystic kidney disease, RPGN rapidly progressive glomerulonephritis

Causes of death among deceased patients in 2016

In the 2016 facility survey, 31,790 deaths were reported; among these, the sex of the patients and the cause of death were listed in the patient survey for 30,638 patients (96.4%). Among men, the most common cause of death was heart failure (25.1%), followed by infectious disease (22.5%), malignant tumor (10.6%), and cerebrovascular disease (6.3%). Among women, the most common cause of death was heart failure (26.9%), followed by infectious disease (20.8%), malignant tumor (7.9%), and cerebrovascular disease (6.8%). For women, the ranking positions of malignant tumor and cerebrovascular disease were switched from those in 2015. Among all deceased patients, the most common cause of death was heart failure (25.7%), followed by infectious disease (21.9%), malignant tumor (9.7%), and cerebrovascular disease (6.5%). The orders of causes of death by sex and for all patients were unchanged from those in 2015. Cardiovascular disease (heart failure, cerebrovascular disease, and myocardial infarction) accounted for 35.6% of deaths among men, 37.1% among women, and 36.2% overall (Fig. 9, Additional file 9: Table S9).
Fig. 9
Fig. 9

Deceased dialysis patient distribution, by cause of death and sex, 2016

Concerning changes in the overall causes of death over time, the most common cause of death is heart failure, which has accounted for 26–27% of deaths in the past several years. Death due to infectious disease had been consistently increasing since around 1993 but decreased by 0.2 percentage points from 2015 to 2016. Cerebrovascular disease has been consistently gradually decreasing since 1994. Recently, myocardial infarction-related deaths have tended to gradually decrease since peaking at 8.4% in 1997. Deaths due to malignant tumors have gradually increased from a low of 5.8% at the end of 1987 but have remained at 9–10% since reaching that point in 2004. Cardiovascular disease (heart failure, cerebrovascular disease, and myocardial infarction) accounted for 54.8% of deaths in 1988; however, this figure has been decreasing at a nearly constant pace, reaching 36.1% in 2016 (Fig. 10, Additional file 10: Table S10). The cause-of-death category codes in the JRDR were substantially revised in the 2003 and 2010 surveys. Please refer to the 2010 JRDR report for the details of these revisions [11].
Fig. 10
Fig. 10

Major causes of death, 1983–2016

Crude death rate

We calculated the annual crude death rate based on the patient dynamics in the facility survey, as follows:
$$ \mathrm{Crude}\ \mathrm{death}\ \mathrm{rate}=\left[\mathrm{number}\ \mathrm{of}\ \mathrm{death}\mathrm{s}/\left(\mathrm{previous}\ \mathrm{year}\ \mathrm{patient}\ \mathrm{count}+\mathrm{survey}\ \mathrm{year}\ \mathrm{patient}\ \mathrm{count}\right)/2\right]\times 100\ \left(\%\right). $$
Because incident patients increased in age and included greater numbers of patients with poor prognosis owing to increases in diabetic nephropathy, nephrosclerosis, and similar diseases, the crude death rate has tended to worsen every year. The lowest crude death rate was 7.9% in 1989, a year with a low survey response rate. However, the crude death rate has remained at 9.2–10.2% since 1992, when it reached 9.7% and thus exceeded 9% for the first time; in 2016, the crude death rate was 9.7% (Table 6).
Table 6

Annual crude death rate, 1983–2016



1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

Crude death rate (%)

9.0

8.9

9.1

9.0

8.5

9.2

7.9

9.6

8.9

9.7

9.4

9.5

9.7

9.4

9.4

9.2

9.7



2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

Crude death rate (%)

9.2

9.3

9.2

9.3

9.4

9.5

9.2

9.4

9.8

9.6

9.8

10.2

10.0

9.8

9.7

9.6

9.7

The above data were obtained from the patient survey

Chapter 2: 2016 incident dialysis patient dynamics

Age, sex, and dialysis vintage of incident patients in 2016

In the 2016 patient survey, the count of incident dialysis patients with confirmed age and sex was 37,250, which is 2094 patients fewer than, or 94.7% of, the 39,344 patients noted in the facility survey. There were 25,506 men and 11,744 women; as in the previous year, there were approximately twice as many men as women. The mean age of all incident patients was 69.40 years, a 0.20-year increase from the mean age of 69.20 years at the end of 2015. The mean age of men and women was 68.57 and 71.19 years, respectively, which represent increases of 0.20 and 0.24 years from the previous year, respectively. The most common 5-year age groups among incident patients were 65–69 years for men and 80–84 years for women. Old-old patients (75 years and older) accounted for 47.2% of women and 37.3% of men (Fig. 11, Additional file 11: Table S11).
Fig. 11
Fig. 11

Incident dialysis patient distribution, by age and sex, 2016

The mean age of incident dialysis patients has been increasing nearly linearly each year, but the rate of increase has been slowing. The mean age of incident patients in 2016 was 69.4 years, which is 0.2 years higher than that in the previous year (Table 7).
Table 7

Average age of incident dialysis patients, 1983–2016



1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

Mean age of the incident dialysis patients

51.9

53.2

54.4

55.1

55.9

56.9

57.4

58.1

58.1

59.5

59.8

60.4

61.0

61.5

62.2

62.7

63.4



2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

Mean age of the incident dialysis patients

63.8

64.2

64.7

65.4

65.8

66.2

66.4

66.8

67.2

67.3

67.8

67.8

68.4

68.7

69.0

69.2

69.4

The above data were obtained from the patient survey

Primary diseases of incident patients in 2016

The most prevalent primary disease among incident dialysis patients in 2016 was diabetic nephropathy, (43.2% of patients), followed by chronic glomerulonephritis (16.6%) and nephrosclerosis (14.2%); the primary disease was unknown for 12.8% of patients. The prevalence of diabetic nephropathy differed between men (46.2%) and women (36.7%). No sex-based difference was observed for chronic glomerulonephritis or nephrosclerosis. Although male patients outnumbered female patients overall, there were more female than male patients with lupus nephritis and amyloidosis (Fig. 12, Additional file 12: Table S12).
Fig. 12
Fig. 12

Incident dialysis patient distribution, by primary disease and sex, 2016. Abbreviations: PIH pregnancy-induced hypertension, PKD polycystic kidney disease, RPGN rapidly progressive glomerulonephritis

In 1998, diabetic nephropathy supplanted chronic glomerulonephritis as the most common primary disease among incident patients; the distribution of diabetic nephropathy has increased consistently ever since, but it has remained nearly the same in the past few years. Chronic glomerulonephritis has been consistently decreasing, whereas the unknown primary disease has been consistently increasing (Fig. 13, Additional file 13: Table S13).
Fig. 13
Fig. 13

Incident dialysis patient distribution, by primary disease, 1983–2016. Abbreviations: PKD polycystic kidney disease, RPGN rapidly progressive glomerulonephritis

Causes of death among incident patients in 2016

The most common cause of death among the overall incident dialysis patients in 2016 was infectious disease (26.4%), followed by heart failure (22.1%) and malignant cancer (12.2%). Among male incident dialysis patients was infectious disease (27.4%), followed by heart failure (21.4%), malignant tumor (12.7%), and others (10.0%). Among female incident dialysis patients, the most common cause of death was infectious disease (24.4%), followed by heart failure (23.5%), others (12.7%), and malignant tumor (11.1%) (Fig. 14, Additional file 14: Table S14).
Fig. 14
Fig. 14

Incident dialysis patient distribution, by cause of death and sex, 2016

In the 1990s, the most common cause of death among incident dialysis patients was heart failure. However, the distribution of infectious disease increased gradually, reaching and surpassing the percentage of heart failure during the year 2000. In 2016, infectious disease remained the most common cause of death among incident dialysis patients (26.4%), followed by heart failure (22.1%). The subsequent order of malignant tumor (12.2%), cerebrovascular disease (5.9%), and myocardial infarction (2.9%) has remained unchanged. Over the long term, the percentages of deaths due to cerebrovascular disease and myocardial infarction have been declining, whereas the percentages of deaths due to infectious disease and malignant tumor have been increasing (Fig. 15, Additional file 15: Table S15).

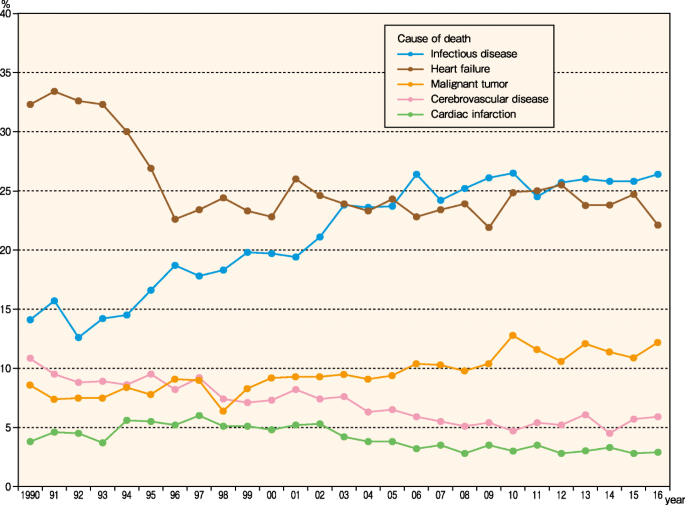

Fig. 15
Fig. 15

Major causes of death during the incident year, 1990–2016

Chapter 3: Dialysis fluid quality management

Overview

Since 2006, the JRDR has conducted a survey on microbiological quality and management of dialysis fluid. Based on the results, the standards for dialysis fluid microbiological quality were revised in 2008 [12], and further standards for biochemical contamination were added in 2016 [13]. In these standards, dialysis fluid microbiological quality is recommended to be assessed both by ET concentration and TVC, which are both evaluated a minimum of once monthly. At least one dialysis console is tested each month, and all consoles are tested a minimum of once annually. The required minimum quality for standard dialysis fluid used in dialysis therapy was defined as an ET concentration of < 0.05 EU/mL and a TVC of < 100 cfu/mL. Furthermore, we recommended the use of ultrapure dialysis fluid (UPD) for all dialysis therapy; UPD is defined as having an ET concentration of < 0.001 EU/mL (less than the measurement sensitivity) and a TVC of < 0.1 cfu/mL. At the time these standards were adopted, as well as in 2016, they were the strictest quality standards for dialysis fluid worldwide. Furthermore, in the 2010 revision of the medical reimbursement system, dialysis fluid quality was added; as a result, dialysis fluid quality control dramatically improved after the 2010 JRDR [10]. In 2015, dialysis fluid ET concentration and patient prognosis were analyzed using JRDR data; the patient group being treated at facilities with a dialysis fluid ET concentration < 0.001 EU/mL was found to have a higher 1-year survival rate than the patient group undergoing treatment at facilities with a concentration of ≥ 0.100 EU/mL [14].

Dialysis fluid endotoxin testing

According to the JSDT standard, dialysis fluid endotoxin (ET) concentration is assayed using Limulus tests [12]. In Japan, these ET assay systems are commercially available at a relatively low cost and widely used. However, this situation is rather rare globally.

A total of 4318 facilities had at least one dialysis console; 4254 of these facilities (98.5%) stated their dialysis fluid ET test frequency. Of these 4254 facilities, 3526 facilities (82.9%) met the JSDT standard of testing dialysis fluid for ET at least once monthly (Fig. 16, Additional file 16: Table S16). Responses about dialysis fluid ET concentration were obtained from 4144 facilities (96.0%). A total of 3406 facilities (82.2%) reached a concentration of < 0.001 EU/mL, which qualifies as UPD, and 4025 facilities (97.1%) reached a concentration of < 0.050 EU/mL, which qualifies as standard dialysis fluid (Fig. 17, Additional file 16: Table S16).
Fig. 16
Fig. 16

Facility distribution, by endotoxin measurement frequency, 2016

Fig. 17
Fig. 17

Facility distribution, by endotoxin concentration, 2016

In 2008, when the JSDT standards for dialysis fluid were enacted, only 33.1% of dialysis fluid ET tests met these standards; however, this percentage improved to 70.6% in 2010, when payments for dialysis fluid quality management were added to the medical reimbursement system, and has been gradually increasing since (Fig. 18, Additional file 17: Table S17). The levels of dialysis fluid ET concentration qualifying as UPD and as standard dialysis fluid have both increased over time (Fig. 19, Additional file 18: Table S18). The absence of values for dialysis fluid ET concentration in 2008 is due to the switch in the unit of dialysis fluid ET concentration from EU/L to EU/mL based on international rules in the survey that year, resulting in many incorrect entries.
Fig. 18
Fig. 18

Facility distribution, by endotoxin measurement frequency, 2006–2016

Fig. 19
Fig. 19

Facility distribution, by endotoxin concentration, 2006–2016. The unit of endotoxin in the questionnaire has changed in 2008. The data of the year were omitted because of the potentially higher rate of erroneous results

Dialysis fluid total viable microbial count testing

The JSDT standards for dialysis fluid stipulate that dialysis fluid total viable microbial count (TVC) is to be assessed as the number of bacterial colonies formed after culturing for 7 days at 17–23 °C on a heterotrophic agar plate medium, as described below [12]. A total of 4239 facilities (98.1%) stated how frequently they assay the TVC of dialysis fluid; of these 4239 facilities, 3276 facilities (77.3%) met the JSDT standard of performing assays at least once per month (Fig. 20, Additional file 19: Table S19). A total of 4015 facilities (93.0%) stated the TVC of their dialysis fluid; of these 4015 facilities, 3057 facilities (76.1%) reached a TVC of < 0.1 cfu/mL, which qualifies as UPD, and 3987 facilities (99.3%) reached a TVC of < 100 cfu/mL, which qualifies as standard dialysis fluid (Fig. 21, Additional file 19: Table S19).
Fig. 20
Fig. 20

Facility distribution, by TVC measurement frequency, 2016. Abbreviation: TVC total viable microbial count

Fig. 21
Fig. 21

Facility distribution, by TVC, 2016. Abbreviation. TVC total viable microbial count

The frequency of TVC testing has increased over time; although this frequency improved in 2010, as did the frequency of ET assays, TVC testing has always been performed slightly less frequently than ET assays (Fig. 22, Additional file 20: Table S20). As with dialysis fluid ET concentrations, the levels of TVC qualifying as UPD and as standard dialysis fluid have increased over time (Fig. 23, Additional file 21: Table S21).
Fig. 22
Fig. 22

Facility distribution, by TVC measurement frequency, 2006–2016. Abbreviation: TVC total viable microbial count

Fig. 23
Fig. 23

Facility distribution, by TVC, 2006–2016. Abbreviation: TVC total viable microbial count

As described above, the JSDT standards for dialysis fluid recommend the use of a certified bacterial culture medium such as Reasoner’s no. 2 agar (R2A), tryptone glucose extract agar (TGEA), or one with a similar sensitivity [12]. In general, in methods using an agar plate medium, a 0.5-mL sampling volume is the minimum volume that guarantees a TVC of 100 cfu/mL, which qualifies as standard dialysis fluid. However, the UPD standard is < 0.1 cfu/mL; to meet this standard, a minimum of 10 mL dialysis fluid must be sampled and then cultured after being strained through a membrane filter. Therefore, the JRDR examines both the culture medium and the sampling volume.

In the 2015 JRDR, 3926 of 4318 facilities (91.0%) stated the medium they used for TCV testing. Of these facilities, 57.9% used R2A and 30.1% used TGEA; altogether, 88.0% of the facilities met the JSDT standard (Fig. 24, Additional file 22: Table S22). Of 4303 facilities, 4042 (93.9%) stated the dialysis fluid sampling volume used for TVC testing. In the 2016 survey, 80.9% of facilities sampled 10 mL or more dialysis fluid, thereby qualifying as UPD (Fig. 25, Additional file 22: Table S22).
Fig. 24
Fig. 24

Facility distribution on TVC measurement, by cultivation medium, 2016. Abbreviations: R2A Reasoner’s no. 2 agar, TGEA tryptone glucose extract agar, TSA trypticase soy agar, TVC total viable microbial count

Fig. 25
Fig. 25

Facility distribution on TVC measurement, by sampling volume, 2016. Abbreviation: TVC total viable microbial count

The use of R2A has been decreasing over time, whereas the use of TGEA has been increasing. Thus, the percentage of facilities that meet the JSDT standard has increased overall (Fig. 26, Additional file 23: Table S23). The percentage of facilities that use a level of sampling volume that qualifies as UPD has also been increasing over time (Fig. 27, Additional file 24: Table S24).

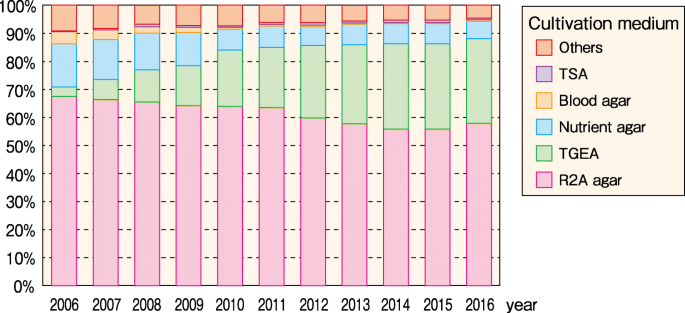

Fig. 26
Fig. 26

Facility distribution, by cultivation medium, 2006–2016. Abbreviations: R2A Reasoner’s no. 2 agar, TGEA tryptone glucose extract agar, TSA trypticase soy agar

Fig. 27
Fig. 27

Facility distribution, by sampling volume for TVC measurement, 2006–2016. Abbreviation: TVC total viable microbial count

Use of endotoxin retentive filters (ETRFs)

The appropriate use of an ETRF is essential for preparing dialysis fluid that remains consistently clean. To that end, the JSDT enacted a standard for ETRF management in 2011 [15].

Of the 4318 facilities with at least one dialysis console, 4316 facilities (99.9%) provided responses about ETRF installation. Among these 4316 facilities, 4204 facilities (97.4%) had installed an ETRF in one or more dialysis consoles. Of the 135,211 dialysis consoles installed at the abovementioned 4316 facilities, 124,705 consoles (92.3%) had an ETRF installed (Tables 8 and 9). The percentage of facilities meeting the UPD standard (ET concentration < 0.001 EU/mL and TVC < 0.1 cfu/mL) was higher among facilities that use an ETRF during sampling than those that do not (Fig. 28, Additional file 25: Table S25, Fig. 29, Additional file 26: Table S26). In general, unless the contamination of dialysis fluid immediately before the ETRF is extremely high, it is theoretically possible to reach the UPD standard for both ET and TVC by passing the dialysis fluid through the ETRF once. However, despite the use of an ETRF, the UPD standards for ET concentration and TVC were not met by 16.9 and 22.7% of the facilities, respectively. These results suggest that although the spread of ETRF use has contributed to the cleanliness of dialysis fluid, there are still issues, such as the handling of ETRFs, that inhibit the achievement of the UPD standard [16].
Table 8

Facility counts, by ETRF installation, 2016



With ETRF

Without ETRF

Subtotal

No information available

Total

Number of facilities (%)

4204 (97.4)

112 (2.6)

4316 (100.0)

2

4318

Values in parentheses under each figure represent the percentage relative to the subtotal in the row. The above data were obtained from the facility survey

Abbreviations: ETRF endotoxin retentive filter

Table 9

Dialysis console counts, by ETRF installation, 2016



Facility status of ETRF installation

Subtotal

No information available

Total

Dialysis consoles with ETRF

Dialysis consoles without ETRF

Numbers of dialysis consoles (%)

124,705 (92.3)

10,423 (7.7)

135,128 (100.0)

83

135,211

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the facility survey

Abbreviations: ETRF endotoxin retentive filter

Fig. 28
Fig. 28

Facility distribution, by ETRF installation during sampling endotoxin concentration, 2016. Abbreviation: ETRF endotoxin retentive filter

Fig. 29
Fig. 29

Facility distribution, by ETRF installation during sampling TVC, 2016. Abbreviations: ETRF endotoxin retentive filter, TVC total viable microbial count

Overall evaluation of the microbiological quality of dialysis fluid

The JSDT standard stipulates that for the microbiological quality of dialysis fluid to qualify as UPD or standard dialysis fluid, the specified levels for both dialysis fluid ET concentration and TVC must be met simultaneously [11, 12]. Of 4318 facilities, 4008 (92.8%) stated both their dialysis fluid ET concentration and TVC. These included 2863 facilities (71.4%) that achieved UPD status and 3888 facilities (97.0%) that achieved standard dialysis fluid status (Fig. 30, Additional file 27: Table S27). The rates of achievement of the UPD and standard dialysis fluid status have been improving over time (Fig. 31, Additional file 28: Table S28).
Fig. 30
Fig. 30

Facility distribution, by TVC and endotoxin concentration, 2016. Abbreviation: TVC total viable microbial count

Fig. 31
Fig. 31

Facility distribution, in achievement of UPD and standard dialysis fluid, 2009–2016. Abbreviation: UPD ultrapure dialysis fluid

Chapter 4: hemodiafiltration (HDF)

Hemodiafiltration patient dynamics

HDF includes on-line HDF, off-line HDF, push/pull HDF, acetate-free biofiltration (AFBF), and intermittent infusion hemodiafiltration (IHDF). The number of HDF patients in Japan has rapidly increased in recent years and had reached 74,799 patients by the end of 2016, accounting for 24.2% of all HD/HDF patients (Fig. 32, Additional file 29: Table S29). Of these 74,799 HDF patients, 48,291 (64.6%) were men and 26,508 (35.4%) were women (Table 10). The mean age was 65.4 years for men and 67.5 years for women, and the most common age group for both men and women was 65–69 years. These distributions and trends resembled those of HD patients, and it was shown that HDF was being performed for a wide range of ages. The distribution of dialysis vintages was largely the same as that for HD patients (Table 11). Men tended to be more numerous in each age group, although the numbers of male and female patients with dialysis vintages of 25 years or longer were nearly identical. The major primary diseases of HDF patients were diabetic nephropathy (35.8%) and chronic glomerulonephritis (32.8%). Thus, as with HD patients, the percentage of diabetic nephropathy was high, whereas the percentage of chronic glomerulonephritis was low (Table 12).
Fig. 32
Fig. 32

HDF patient counts, by HDF modality, 2009–2016. Abbreviations: AFBF acetate-free biofiltration, HDF hemodiafiltration, IHDF intermittent infusion hemodiafiltration

Table 10

HDF patient distribution, by age & sex, 2016

sex

<20

20≤,<25

25≤,<30

30≤,<35

35≤,<40

40≤,<45

45≤,<50

50≤,<55

55≤,<60

60≤,<65

Male

7

31

126

349

766

1,684

2,958

3,719

4,623

6,192

(%)

(0.0)

(0.1)

(0.3)

(0.7)

(1.6)

(3.5)

(6.1)

(7.7)

(9.6)

(12.8)

Female

4

22

65

141

308

750

1,203

1,612

2,218

3,213

(%)

(0.0)

(0.1)

(0.2)

(0.5)

(1.2)

(2.8)

(4.5)

(6.1)

(8.4)

(12.1)

Total

11

53

191

490

1,074

2,434

4,161

5,331

6,841

9,405

(%)

(0.0)

(0.1)

(0.3)

(0.7)

(1.4)

(3.3)

(5.6)

(7.1)

(9.1)

(12.6)

sex

65≤,<70

70≤,<75

75≤,<80

80≤,<85

85≤,<90

90≤,<95

95≤

Total

Mean age

S.D.

Male

9,153

6,761

5,775

3,937

1,739

434

37

48,291

65.42

12.45

(%)

(19.0)

(14.0)

(12.0)

(8.2)

(3.6)

(0.9)

(0.1)

100



Female

5,049

3,866

3,538

2,575

1,458

439

47

26,508

67.49

12.42

(%)

(19.0)

(14.6)

(13.3)

(9.7)

(5.5)

(1.7)

(0.2)

100



Total

14,202

10,627

9,313

6,512

3,197

873

84

74,799

66.15

12.48

(%)

(19.0)

(14.2)

(12.5)

(8.7)

(4.3)

(1.2)

(0.1)

(100.0)



Abbreviations: HDF hemodiafiltration

Values in parentheses under each figure represent the percentage relative to the subtotal in each row

*The above data were obtained from the patient survey

Table 11

HDF patient distribution, by sex and dialysis vintage, 2016

Sex (%)

< 5

5≤,< 10

10≤,< 15

15≤,< 20

20≤,< 25

25≤,< 30

30≤,< 35

35≤,< 40

40≤

Subtotal

Unspecified

Total

Mean age

SD

Male

19,888 (41.2)

12,785 (26.5)

6845 (14.2)

3805 (7.9)

2284 (4.7)

1301 (2.7)

759 (1.6)

438 (0.9)

159 (0.3)

48,264 (100.0)

27

48,291

8.33

7.97

Female

8816 (33.3)

6404 (24.2)

4102 (15.5)

2773 (10.5)

1872 (7.1)

1248 (4.7)

727 (2.7)

404 (1.5)

154 (0.6)

26,500 (100.0)

8

26,508

10.4

9.15

Total

28,704 (38.4)

19,189 (25.7)

10,947 (14.6)

6578 (8.8)

4156 (5.6)

2549 (3.4)

1486 (2.0)

842 (1.1)

313 (0.4)

74,764 (100.0)

35

74,799

9.07

8.47

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey

Abbreviation: HDF hemodiafiltration

Table 12

Prevalent dialysis patient distribution, by HDF/HD and primary disease, 2016

Primary disease

HDF (%)

HD (%)

Diabetes

26,768 (35.8)

93,965 (40.2)

Chronic glomerulonephritis

24,519 (32.8)

63,328 (27.1)

Nephrosclerosis

6443 (8.6)

24,053 (10.3)

PKD

2807 (3.8)

8319 (3.6)

Chronic pyelonephritis

687 (0.9)

2083 (0.9)

Others

13,575 (18.1)

41,956 (18.0)

Total

74,799 (100.0)

233,704 (100.0)

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey

Abbreviations: HD hemodialysis, HDF hemodiafiltration, PKD polycystic kidney disease

HDF modalities

The most common HDF modality in 2016 was on-line HDF, which accounted for 59,116 patients (79.0% of all HDF patients) (Fig. 32, Additional file 29: Table S29). Until 2011, the major HDF modality was off-line HDF; however, since 2012, on-line HDF has been the major modality and its use has increased tremendously. In contrast, the number of off-line HDF patients has been decreasing yearly. In 2015, IHDF was added to the survey items and has been trending upward, with 10,728 patients at the end of 2016 (14.3% of all HDF patients).

Among all patients and all dialysis modalities (including detailed HDF modalities), the percentage of HDF tended to increase as the dialysis vintage lengthened (Fig. 33, Additional file 30: Table S30). The percentages of both on-line and off-line HDF tended to increase as the dialysis vintage lengthened. Among all the groups, IHDF accounted for about 2–3% of all patients. As the dialysis vintage lengthened, the percentage of PD decreased, whereas the percentage of hemoadsorption dialysis tended to increase; hemoadsorption dialysis was performed in 11.5% of all patients with dialysis vintages of at least 40 years.

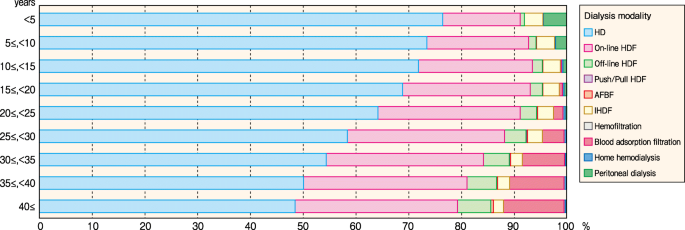

Fig. 33
Fig. 33

Prevalent dialysis patient distribution, by dialysis modality and dialysis vintage, 2016. Abbreviations: AFBF acetate-free biofiltration, HD hemodialysis, HDF hemodiafiltration, IHDF intermittent infusion hemodiafiltration

HDF prescriptions

The HDF prescriptions consisted of the four possible combinations of on-line/off-line HDF and the dilution method (pre-dilution and post-dilution). The most common combination was on-line HDF/pre-dilution (48,457 patients), whereas the least common combination was off-line HDF/pre-dilution (501 patients). The blood flow rate in on-line HDF tended to be higher than that in off-line HDF; however, there was no difference in blood flow rate between pre-dilution and post-dilution (Fig. 34, Additional file 31: Table S31). The on-line HDF/pre-dilution combination had the highest blood flow rate, with a mean of 229 mL/min; in this combination, > 50% of patients demonstrated a blood flow rate of 220 mL/min or higher, whereas 9.1% of patients demonstrated a blood flow rate of 300 mL/min or higher. On-line HDF was found to involve a longer dialysis time (Fig. 35, Additional file 32: Table S32).
Fig. 34
Fig. 34

HDF patient distribution, by dilution mode and blood flow rate, 2016. Abbreviation: HDF hemodiafiltration

Fig. 35
Fig. 35

HDF patient distribution, by dilution mode and dialysis time, 2016. Abbreviation: HDF hemodiafiltration

The highest substitution volume was observed in the on-line HDF/pre-dilution combination (mean, 39.9 L), whereas the on-line HDF/post-dilution combination had a substitution volume of 10.2 L (Fig. 36, Additional file 33: Table S33). In off-line HDF, the substitution volume in pre-dilution and post-dilution was 12.0 and 8.0 L, respectively. There were no changes in substitution volume or its distribution over time in on-line HDF/pre-dilution or on-line HDF/post-dilution. In contrast, the substitution volume for the off-line HDF/pre-dilution combination exhibited a slight upward trend yearly. The substitution volume for the off-line HDF/post-dilution has remained at around 8.0 L.
Fig. 36
Fig. 36

Substitution fluid volume, by HDF modality and dilution mode, 2012–2016. Abbreviation: HDF hemodiafiltration

Comparison of HDF patients and in-center HD patients

We compared the background factors and treatment indices of HDF patients with those of in-center HD patients by using on-line versus off-line and by dilution methods (Table 13). HDF patients did not demonstrate evident sex differences but were younger and tended to have longer dialysis vintages than in-center HD patients. The prevalence of diabetic nephropathy as a primary disease among HDF patients was lower than that among in-center HD patients. The dialysis time was around 4 h for in-center HD patients and HDF patients in all HDF modalities. The blood flow rate in HDF patients was relatively high, which may be due to factors such as age differences between the patients. Although small-molecule clearance generally decreased at high rates of pre-dilution, we found no difference in single-pool Kt/V urea (Kt/Vsp) between HD and HDF or between dilution modalities. This could be due to the slightly higher values for dialysis time and blood flow rate for the on-line HDF/pre-dilution combination, which involves a large substitution volume, than for in-center HD.
Table 13

Comparisons of HD, on-line HDF, and off-line HDF, 2016



Hemodialysis

On-line HDF

Off-line HDF

Pre-dilution

Post-dilution

Pre-dilution

Post-dilution

Number of patients (%)

209,536

48,457

2227

501

3250

Male

135,450

31,658

1454

319

1970

Male (%)

64.6

65.3

65.3

63.7

60.6

Percentage of diabetes (%)

40.3

35.2

32.9

32.9

32.0

Age

68.93 ± 12.26

65.44 ± 12.44

64.77 ± 12.65

66.46 ± 12.11

66.66 ± 11.89

Dialysis vintage (years)

6.94 ± 7.14

9.18 ± 8.41

10.51 ± 9.07

11.24 ± 9.42

12.56 ± 10.07

Dialysis time (minute)

238.81 ± 32.04

245.21 ± 28.96

243.78 ± 29.23

238.43 ± 28.9

247.11 ± 30.37

Blood flow rate (mL/min)

206.0 ± 35.5

228.7 ± 40.0

224.9 ± 42.2

215.8 ± 38.4

214.3 ± 36.2

Kt/Vsp male*

1.42 ± 0.26

1.45 ± 0.26

1.46 ± 0.28

1.41 ± 0.26

1.46 ± 0.27

Kt/Vsp female*

1.64 ± 0.31

1.70 ± 0.32

1.73 ± 0.35

1.62 ± 0.32

1.71 ± 0.33

Serum albumin (male)

3.57 ± 0.45

3.63 ± 0.38

3.61 ± 0.36

3.57 ± 0.46

3.55 ± 0.45

Serum albumin (female)

3.50 ± 0.44

3.58 ± 0.37

3.55 ± 0.38

3.56 ± 0.41

3.49 ± 0.43

Normalized protein catabolic rate (g/kg/day, male)*

0.84 ± 0.17

0.86 ± 0.16

0.87 ± 0.16

0.86 ± 0.17

0.85 ± 0.17

Normalized protein catabolic rate (g/kg/day, female)*

0.87 ± 0.18

0.90 ± 0.18

0.90 ± 0.18

0.92 ± 0.22

0.89 ± 0.18

Pre-dialysis serum creatinine (male)*

10.81 ± 2.78

11.41 ± 2.71

11.58 ± 2.83

10.99 ± 2.64

10.88 ± 2.72

Pre-dialysis serum creatinine (female)*

8.96 ± 2.34

9.55 ± 2.16

9.46 ± 2.04

9.18 ± 1.90

9.08 ± 2.10

Percent creatinine generation rate (%CGR) (male)*

98.77 ± 25.56

102.10 ± 23.81

102.44 ± 22.79

97.10 ± 24.91

98.17 ± 24.60

Percent creatinine generation rate (%CGR) (female)*

97.93 ± 26.36

102.60 ± 23.76

102.28 ± 23.69

98.17 ± 25.96

98.60 ± 24.85

Serum CRP level (mg/dL)

0.66 ± 1.88

0.52 ± 1.41

0.51 ± 1.30

0.69 ± 1.84

0.82 ± 2.23

Pre-dialysis serum calcium (mg/dL)

9.16 ± 0.75

9.14 ± 0.72

9.21 ± 0.70

9.22 ± 0.77

9.27 ± 0.80

Pre-dialysis serum phosphorus (mg/dL)

5.17 ± 1.44

5.35 ± 1.42

5.41 ± 1.39

5.28 ± 1.49

5.17 ± 1.46

Intact PTH level (pg/ml)

176.5 ± 170.1

181.6 ± 168.0

180.52 ± 181.9

182.5 ± 201.7

170.7 ± 189.0

Pre-dialysis serum total cholesterol (mg/dl)

155.4 ± 36.1

159.1 ± 35.7

162.3 ± 36.8

154.7 ± 35.7

155.0 ± 36.4

Pre-dialysis hemoglobin (g/dL)

10.77 ± 1.31

10.95 ± 1.23

10.95 ± 1.21

10.86 ± 1.36

10.77 ± 1.31

Population: in-center hemodialysis or hemodiafiltration (three times a week). The above data were obtained from the patient survey. For the indices from age to percent creatinine generation rate (female), “mean ± SD” are shown. Note: Total number of each index was different from each other because response rate for the question was different in each other

Abbreviations: Kt/Vsp index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume; sp single pool; PTH parathyroid hormone

*Kt/V, nPCR, creatinine concentration, and %CGR were summarized in the patients with vintages of 2 years or more and receiving dialysis three times a week

As for nutritional status indices, there were no evident differences between HDF and HD in serum albumin levels or nPCR. Creatinine levels and %CGR were higher with in on-line HDF/pre-dilution and post-dilution than in HD and roughly equivalent between HD and off-line HDF/pre-dilution and post-dilution. The CRP levels tended to be lower for on-line HDF/pre-dilution and post-dilution than in HD.

As treatment indicators for chronic kidney disease-mineral and bone disorder, the corrected calcium levels and intact PTH levels did not differ between modalities. Phosphorus levels were high with on-line HDF/pre-dilution and post-dilution. As for total cholesterol levels and hemoglobin levels, there were no evident differences between treatment modalities.

The differences in clinical indices between HDF patients and in-center HD patients may be due to selection bias such as patient age.

Chapter 5: peritoneal dialysis (PD)

PD patient dynamics

According to the facility survey, there were 9021 PD patients in 2016. The variations of PD therapy were PD only and combination with HD once weekly, twice weekly, thrice weekly, and other combinations; the number of patients in each modality was 7190, 1560, 169, 38, and 64, respectively (Table 1). Although the total number of PD patients has been gradually decreasing since 2009, it must be noted that because the JRDR survey mainly targets facilities performing HD, PD patients treated at other facilities may not be included (Fig. 37, Additional file 34: Table S34). In 2015, we began to investigate the number of incident PD patients, which decreased from 2197 in 2015 to 1946 in 2016.
Fig. 37
Fig. 37

Prevalent and incident PD patient counts, 2009–2016. Abbreviation: PD peritoneal dialysis

There were 8693 patients undergoing PD (including in combination with HD) in the patient survey; these patients consisted of 5655 (65.1%) men and 3038 (34.9%) women with mean ages of 62.96 and 63.41 years, respectively (Table 14). The age distribution peaked at 60–74 years, which was the same trend as with HD patients. Of all patients currently undergoing PD, 44.2% had vintages of < 2 years whereas 7.1% had vintages of 8 years or longer (Table 15). Diabetic nephropathy was the primary disease in 31.9% of PD patients, which was nearly equal to the 31.0% PD patients with chronic glomerulonephritis as the primary disease (Table 16). The percentage of diabetic nephropathy in PD patients was lower than that in HD patients.
Table 14

Prevalent PD patient distribution, by age and sex, 2016

Age

Male

Female

Subtotal

Total

< 15

41 (0.7)

44 (1.4)

85 (1.0)

85 (1.0)

15≤,< 30

58 (1.0)

37 (1.2)

95 (1.1)

95 (1.1)

30≤,< 45

392 (6.9)

224 (7.4)

616 (7.1)

616 (7.1)

45≤,< 60

1518 (26.8)

788 (25.9)

2306 (26.5)

2306 (26.5)

60≤,< 75

2558 (45.2)

1204 (39.6)

3762 (43.3)

3762 (43.3)

75≤,< 90

1028 (18.2)

675 (22.2)

1703 (19.6)

1703 (19.6)

90≤

60 (1.1)

66 (2.2)

126 (1.4)

126 (1.4)

Total

5655 (100.0)

3038 (100.0)

8693 (100.0)

8693 (100.0)

Mean

62.96

63.41

63.12

63.12

SD

13.78

15.65

14.46

14.46

Values in parentheses under each figure represent the percentage relative to the total in each column. The above data were obtained from the patient survey

Abbreviation: PD peritoneal dialysis

Table 15

Prevalent PD patient distribution, by PD vintage and sex, 2016

PD vintage

Male

Female

Subtotal

Total

< 1

885 (23.8)

428 (21.6)

1313 (23.0)

1313 (23.0)

1≤,< 2

821 (22.1)

389 (19.6)

1210 (21.2)

1210 (21.2)

2≤,< 4

999 (26.8)

530 (26.7)

1529 (26.8)

1529 (26.8)

4≤,< 6

545 (14.6)

287 (14.5)

832 (14.6)

832 (14.6)

6≤,< 8

244 (6.6)

172 (8.7)

416 (7.3)

416 (7.3)

8≤,< 10

92 (2.5)

90 (4.5)

182 (3.2)

182 (3.2)

10≤

137 (3.7)

88 (4.4)

225 (3.9)

225 (3.9)

Subtotal

3723 (100.0)

1984 (100.0)

5707 (100.0)

5707 (100.0)

No information available

1932

1054

2986

2986

Total

5655

3038

8693

8693

Mean

3.04

3.46

3.19

3.19

SD

2.96

3.35

3.11

3.11

Values in parentheses under each figure represent the percentage relative to the total in each column. The above data were obtained from the patient survey

Abbreviation: PD peritoneal dialysis

Table 16

Prevalent patient distribution, by PD or HD and primary disease, 2016

Primary disease

Peritoneal dialysis (%)

Hemodialysis (%)

Diabetes

2772 (31.9)

93,905 (40.2)

Chronic glomerulonephritis

2695 (31.0)

63,287 (27.1)

Nephrosclerosis

1110 (12.8)

24,045 (10.3)

PKD

274 (3.2)

8318 (3.6)

Chronic pyelonephritis

99 (1.1)

2081 (0.9)

Others

1743 (20.1)

41,930 (18.0)

Total

8693 (100.0)

233,566 (100.0)

Values in parentheses under each figure represent the percentage relative to the total in each column. The above data were obtained from the patient survey

Abbreviations: HD hemodialysis, PD peritoneal dialysis

PD + HD combined therapy

Of the 8693 PD patients for whom responses were provided in the 2016 patient survey, the number of patients undergoing PD alone was 6931 (79.7%), and this number has remained virtually unchanged since 2009 (Fig. 38, Additional file 35: Table S35). Only 3.4% of patients with PD vintages < 2 years were undergoing combined therapy with HD(F); however, the percentage of combined therapy increased as the PD vintages lengthened, increasing to 53.1% of patients with PD vintages of at least 8 years (Fig. 39, Additional file 36: Table S36). Most patients undergoing combined therapy did so once a week as 84.9% of all combined therapy patients.
Fig. 38
Fig. 38

Prevalent patient distribution, by PD + HD combination frequency, 2009–2016. Abbreviations: HD hemodialysis, PD peritoneal dialysis

Fig. 39
Fig. 39

Prevalent PD patients distribution, by PD + HD combined therapy and PD vintage, 2016. Abbreviation: HD hemodialysis, PD peritoneal dialysis

PD prescriptions

PD prescriptions were examined for the 6931 patients undergoing PD alone according to the patient survey. Of these 6931 patients, responses about the daily PD fluid volume were obtained for 4476 patients (64.6%). The mean PD fluid volume for men and women was 6.59 and 5.69 L, respectively. The PD fluid volume decreased as age increased (Fig. 40, Additional file 37: Table S37) and increased as PD vintages lengthened (Fig. 41, Additional file 38: Table S38). The daily PD treatment time was stated for 4393 patients (63.4%); there was no evident difference based on sex (men 18.0 h, women 17.7 h) or age (Fig. 42, Additional file 39: Table S39). In contrast, longer PD vintages were correlated with longer PD treatment times; 74.9% of all patients with a PD vintage of 8 years or longer had a daily PD treatment time of 24 h (Fig. 43, Additional file 40: Table S40).
Fig. 40
Fig. 40

PD fluid volume, by age and sex, 2016. Abbreviation: PD peritoneal dialysis

Fig. 41
Fig. 41

PD fluid volume distribution, by PD vintage, 2016. Abbreviation: PD peritoneal dialysis

Fig. 42
Fig. 42

PD treatment time, by age and sex, 2016. Abbreviation: PD peritoneal dialysis

Fig. 43
Fig. 43

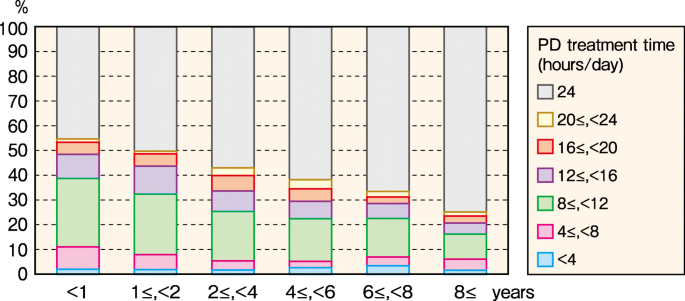

PD treatment time distribution, by PD vintage, 2016. Abbreviation: PD peritoneal dialysis

Responses about the use of APD were received for 4672 patients (67.4%), 41.9% of whom had undergone APD (Table 17). Responses about changing the maneuver of PD fluid were received for 4640 patients (66.9%); UV sterilization connecting devices, completely manual methods, and thermal sterilization connecting devices were used for 53.4, 27.1, and 16.7% of these patients, respectively (Table 18).
Table 17

Prevalent PD patient counts, by APD machine use, 2016



Patients on APD

Patients on CAPD

Subtotal

Unspecified

No information available

Total

Patients (%)

1957 (41.9)

2715 (58.1)

4672 (100.0)

9

2250

6931

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey. Population: PD patients excluding PD + HD combination

Abbreviations: APD automated peritoneal dialysis, CAPD continuous peritoneal dialysis, HD hemodialysis, PD peritoneal dialysis

Table 18

Prevalent PD patient counts, by PD fluid changing maneuver, 2016



Manual exchange

Devices using UV irradiation

Devices using heat sterilization

Other devices including semi-automated

Subtotal

Unspecified

No information available

Total

Patients (%)

1258 (27.1)

2478 (53.4)

775 (16.7)

129 (2.8)

4640 (100.0)

19

2272

6931

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey. Population: PD patients excluding PD + HD combination

Abbreviations: HD hemodialysis, PD peritoneal dialysis

Residual kidney function (urine volume and residual kidney Kt/V)

Residual kidney function was evaluated by residual kidney Kt/V and urine volume for the 6931 patients undergoing PD alone. Mean urine volume responses were obtained for 3825 patients (55.2%), which represents a slightly lower response rate than those for the other questions about PD discussed above. The mean urine volume for men and women was 778 and 665 mL, respectively (Fig. 44, Additional file 41: Table S41). There were no evident differences by age, but urine volume decreased as PD vintage increased; 60.0% of patients with a PD vintage of 8 years or longer had a urine volume of < 100 mL (Fig. 45, Additional file 42: Table S42).
Fig. 44
Fig. 44

Urine volume, by age and sex, 2016

Fig. 45
Fig. 45

Urine volume distribution, by PD vintage, 2016. Abbreviation: PD peritoneal dialysis

Residual kidney Kt/V responses were obtained for 2070 patients; the mean was 0.65 for men and 0.61 for women (Fig. 46, Additional file 43: Table S43). There were no evident differences by age, but residual kidney Kt/V showed a downward trend as the PD vintage lengthened (Fig. 47, Additional file 44: Table S44); 83.1% of patients with a PD vintage of 8 years or longer had a residual renal Kt/V of < 0.4.
Fig. 46
Fig. 46

Residual kidney Kt/V, by age and sex, 2016. Abbreviations: Kt/V index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume

Fig. 47
Fig. 47

Residual kidney Kt/V distribution, by PD vintage, 2016. Abbreviations: Kt/V index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume; PD peritoneal dialysis

PD dose (ultrafiltration volume and PD Kt/V)

The PD dose was evaluated by ultrafiltration volume and PD Kt/V for 6931 patients undergoing PD alone. Mean ultrafiltration volume responses were obtained for 4383 patients (63.2%). The mean ultrafiltration volume for men and women was 632 and 582 mL, respectively (Fig. 48, Additional file 45: Table S45). There were no evident differences by age, but ultrafiltration volume showed an upward trend as the PD vintage lengthened; 55.6% of patients with a PD vintage of 8 years or longer had an ultrafiltration volume of 800 mL or more (Fig. 49, Additional file 46: Table S46).
Fig. 48
Fig. 48

Ultrafiltration volume, by age and sex, 2016

Fig. 49
Fig. 49

Ultrafiltration volume distribution, by PD vintage, 2016. Abbreviation: PD peritoneal dialysis

Mean PD Kt/V responses were obtained for 2238 patients (32.3%). The mean PD Kt/V for men and women was 1.17 and 1.32, respectively; thus, women tended to have higher values, but there were no evident tendencies by age (Fig. 50, Additional file 47: Table S47). PD Kt/V also showed an upward trend as PD vintage lengthened; 63.8% of patients with a PD vintage of 8 years or longer had a PD Kt/V of 1.6 or more (Fig. 51, Additional file 48: Table S48).
Fig. 50
Fig. 50

PD Kt/V, by age and sex, 2016. Abbreviations: Kt/V index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume; PD peritoneal dialysis

Fig. 51
Fig. 51

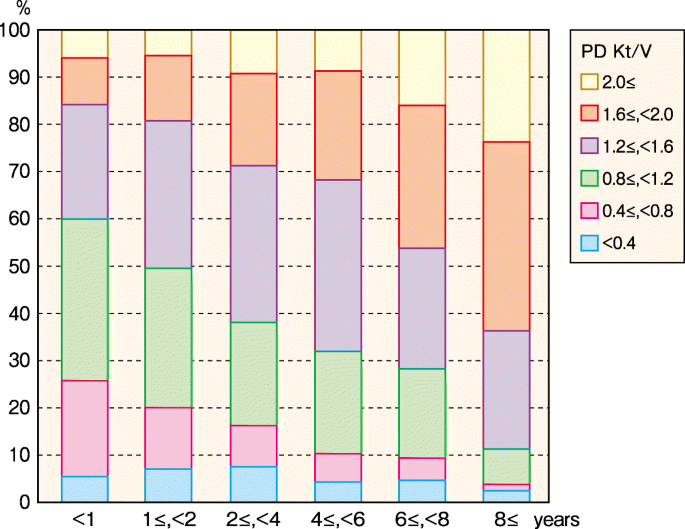

PD Kt/V distribution, by PD vintage, 2016. Abbreviations: Kt/V index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume; PD peritoneal dialysis

PET and D/P Cr ratio

The JSDT PD guideline recommends evaluating peritoneal function with peritoneal equilibration test (PET) once or twice a year [17]. The JRDR investigated “with or without” of PET and the dialysate/peritoneal creatinine (D/P Cr) ratio. Among patients undergoing PD alone, a PET was performed for 45.9% of patients, whereas only fast PET1 was performed for 18.1% of patients, and no PET was performed for 36.0% of patients (Table 19). The mean D/P Cr ratio for men and women was 0.67 and 0.65, respectively; thus, there was no sex-based difference, but an upward trend was observed as the age increased (Fig. 52, Additional file 49: Table S49). No consistent trend was seen in the D/P Cr ratio by PD vintage, but the ratio decreased slightly to 0.63 among patients with a PD vintage of 8 years or longer (Fig. 53, Additional file 50: Table S50). The D/P Cr ratio by primary disease was high, 0.68, for both diabetic nephropathy and nephrosclerosis (Fig. 54, Additional file 51: Table S51).
Table 19

History of PET, 2016



Not performed

Standard PET

Fast PET

Subtotal

Unspecified

No information available

Total

Patients (%)

1704 (36.0)

2173 (45.9)

857 (18.1)

4734 (100.0)

42

2155

6931

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey. Population: PD patients excluding PD + HD combination

Abbreviations: HD hemodialysis, PD peritoneal dialysis, PET peritoneal equilibration test

Fig. 52
Fig. 52

D/P Cr ratio, by age and sex, 2016. Abbreviations: D/P Cr ratio dialysate/plasma creatinine ratio, PD peritoneal dialysis

Fig. 53
Fig. 53

D/P Cr ratio distribution, by PD vintage, 2016. Abbreviations: D/P Cr ratio dialysate/plasma creatinine ratio, PD peritoneal dialysis

Fig. 54
Fig. 54

D/P Cr ratio, by primary disease, 2016. Abbreviations. D/P Cr ratio dialysate/plasma creatinine ratio, PD peritoneal dialysis, PKD polycystic kidney disease

Peritonitis and exit-site infections

Peritonitis and catheter exit-site infections (ESIs) are major complications of PD and are therefore key factors that reduce PD continuation rates. The International Society for Peritoneal Dialysis (ISPD) guideline recommends monitoring the incidence of peritonitis as part of a continuous quality improvement program [18]. Peritonitis is defined as a white blood cell count of 100/μL (at least 50% neutrophils) in PD drainage fluid; the peritonitis rate per patient-year was calculated based on the ISPD guideline using the formula below. ESIs were defined as evident drainage of pus.
$$ \mathrm{Peritonitis}\ \mathrm{rate}=\mathrm{peritonitis}\ \mathrm{episodes}\ \mathrm{in}\ 2016\div \mathrm{total}\ \mathrm{months}\ \mathrm{in}\ 2016\ \mathrm{on}\ \mathrm{PD}/12. $$
Of the 6931 patients undergoing PD alone, responses about peritonitis episodes were obtained from 4406 (63.6%); peritonitis was observed at least once during the year in 14.5% of patients (Fig. 55, Additional file 52: Table S52). Among the 4406 patients for whom responses were obtained, the peritonitis rate was 0.24 per patient-year, which was the same as in 2015. Men had a rate of 0.26 episodes/patient-year, whereas women had a rate of 0.22 episodes/patient-year; thus, the peritonitis rate was slightly higher among men (Fig. 56, Additional file 53: Table S53). Patients younger than 45 years had a peritonitis rate of 0.21 episodes/patient-year, versus a rate of 0.30 episodes/patient-year among patients aged 75 years and older; thus, the peritonitis rate tended to increase with age (Fig. 57, Additional file 54: Table S54). No consistent trend was found between peritonitis onset and PD vintage (Fig. 58, Additional file 55: Table S55). In addition, there was no evident difference in peritonitis rate by primary disease (Fig. 59, Additional file 56: Table S56).
Fig. 55
Fig. 55

Patient’s peritonitis rate, 2016

Fig. 56
Fig. 56

Patient’s peritonitis rate, by sex, 2016

Fig. 57
Fig. 57

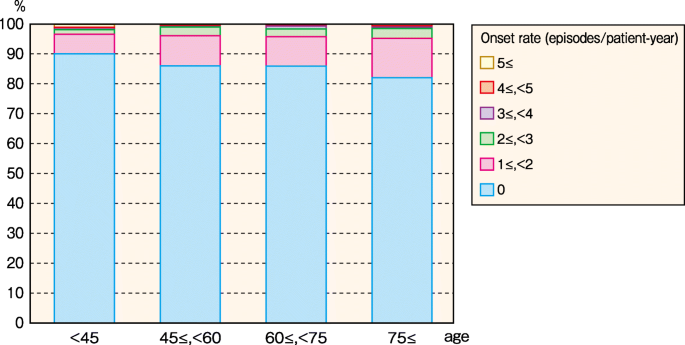

Patient’s peritonitis rate, by age, 2016

Fig. 58
Fig. 58

Patient’s peritonitis rate, by PD vintage, 2016. Abbreviation: PD peritoneal dialysis

Fig. 59
Fig. 59

Patient’s peritonitis rate, by primary disease, 2016

Responses about ESIs were obtained from 4391 patients (63.4%), 19.7% of whom had at least one ESI during the year (Fig. 60, Additional file 57: Table S57).
Fig. 60
Fig. 60

Patient’s ESI rate, 2016. Abbreviation: ESI exit-site infection

History of EPS

Encapsulating peritoneal sclerosis (EPS) is a serious complication of PD; responses about a history of EPS and details of treatment were obtained for 13,025 patients who are currently undergoing PD or have a history of PD. We found that 696 (5.3%) of these patients had a history of EPS; of these patients, 83.6% had a history of steroid use and 77.7% had a history of ablative surgery (Table 20). Of these 696 patients with a history of EPS, there were 418 men (60.1%) and 278 women (39.9%), and the age distribution was nearly identical to that of overall PD patients (Fig. 61, Additional file 58: Table S58). The frequency of EPS increased as the PD vintage lengthened; 511 patients with a history of EPS had a PD vintage of at least 8 years (Fig. 62, Additional file 59: Table S59).
Table 20

Patient with EPS history distribution, by treatment for EPS, 2016

EPS history

No history of EPS

EPS with history of surgical intervention and steroidal use

EPS with history of surgical intervention but without steroid

EPS without surgical intervention but with steroidal use

EPS without surgical intervention or steroidal use

Subtotal

Unspecified

No information available

Total

Patients (%)

12,329 (94.7)

502 (3.9)

39 (0.3)

80 (0.6)

75 (0.6)

13,025 (100.0)

265

3819

17,109

Values in parentheses under each figure represent the percentage relative to the subtotal in each row. The above data were obtained from the patient survey. Population: PD patients excluding PD + HD combination

Abbreviations: HD hemodialysis, PD peritoneal dialysis, EPS encapsulating peritoneal sclerosis

Fig. 61
Fig. 61

Patient with EPS history distribution, by age and sex, 2016. Abbreviation: EPS encapsulating peritoneal sclerosis

Fig. 62
Fig. 62

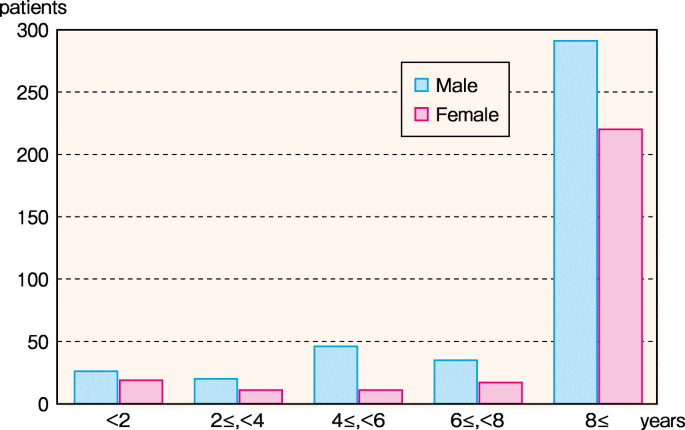

Patient with EPS history distribution, by PD vintage and sex, 2016. Abbreviations: EPS encapsulating peritoneal sclerosis, PD peritoneal dialysis

Conclusion

To summarize the 2016 JRDR results, the number of chronic dialysis patients and dialysis facilities in Japan continued to increase, but the rate of increase has been gradually declining. The percentage of home dialysis combined with PD and HHD remained low at 3.0%, and PD in particular exhibited a downward trend. Amidst calls for promoting regional comprehensive care and the necessity for home treatment as dialysis patients become older, we believe that a balanced selection of dialysis modalities is necessary. For in-center HD therapy, the number of on-line HDF patients has increased rapidly since the 2012 revision of the medical reimbursement system; HDF treatment overall now represents approximately one fourth of all in-center dialysis patients. Going forward, it will be necessary to use the JRDR data to analyze the relationships between different types of treatment variations, patient care, survival outcomes, and incidence of complications to formulate evidence-based treatment plans and revise the medical reimbursement system.

Footnotes
1

In the standard PET, a 2.5% dextrose solution is retained for 4 h, and the blood Cr/dialysis fluid Cr ratio is measured at 2 and 4 h; in fast PET, values are measured only at 4 h.



Abbreviations

%CGR:

Percent creatinine generation rate

AFBF:

Acetate-free biofiltration

APD:

Automated peritoneal dialysis

CD-ROM:

Compact disc-read only memory

CRP:

C-reactive protein

D/P Cr ratio:

Dialysate/plasma creatinine ratio

EPS:

Encapsulating peritoneal sclerosis

ESI:

Exit-site infection

ESKD:

End-stage kidney disease

ET:

Endotoxin

ETRF:

Endotoxin retentive filter

HD:

Hemodialysis

HDF:

Hemodiafiltration

HDL-C:

High-density-lipoprotein-cholesterol concentration

HF:

Hemofiltration

HHD:

Home hemodialysis

IHDF:

Intermittent infusion hemodiafiltration

JRDR:

JSDT Renal Data Registry

JSDT:

Japanese Society for Dialysis Therapy

Kt/V

Index for standardized dialysis dose defined as K urea clearance, t dialysis time, V body fluid volume

nPCR:

Normalized protein catabolic rate

PD:

Peritoneal dialysis

PET:

Peritoneal equilibration test

PIH:

Pregnancy-induced hypertension

pmp:

Per million population

PTH:

Parathyroid hormone

R2A:

Reasoner’s no. 2 agar

RRT:

Renal Replacement Therapy (an official journal of JSDT)

TAD:

Therapeutic Apheresis and Dialysis (an official journal of JSDT)

TGEA:

Tryptone glucose extract agar

TVC:

Total viable microbial count

UF:

Ultrafiltration

UMIN:

University hospital Medical Information Network

UMIN-CTR:

UMIN Clinical Trials Registry

UN:

Urea N

UPD:

Ultrapure dialysis fluid

USB:

Universal serial bus

Declarations

Acknowledgements

We owe the completion of this survey to the efforts of the members of the subcommittee of the District Cooperative Committee members mentioned as following, and the staff members of dialysis facilities who participated in the survey and responded to the questionnaires. We would like to express our deepest gratitude to all these people.

District Cooperative Committee: Kazuyuki Maeno, Tetsuya Kawata, Chikara Oyama, Koji Seino, Toshinobu Sato, Shigeru Sato, Minoru Ito, Junichiro Kazama, Atsushi Ueda, Osamu Saito, Tetsuo Ando, Tomonari Ogawa, Hiroo Kumagai, Makoto Ogura, Takahiro Mochizuki, Ryoichi Ando, Kazuyoshi Okada, Tetsuya Kashiwagi, Chieko Hamada, Yugo Shibagaki, Nobuhito Hirawa, Hisaki Shimada, Yoichi Ishida, Hitoshi Yokoyama, Ryoichi Miyazaki, Mizuya Fukasawa, Yuji Kamijyo, Teppei Matsuoka, Akihiko Kato, Noriko Mori, Yasuhiko Ito, Hirotake Kasuga, Sukenari Koyabu, Tetsuro Arimura, Tetsuya Hashimoto, Masaaki Inaba, Terumasa Hayashi, Tomoyuki Yamakawa, Shinichi Nishi, Akira Fujimori, Tatsuo Yoneda, Shigeo Negi, Akihisa Nakaoka, Takafumi Ito, Hitoshi Sugiyama, Takao Masaki, Yutaka Nitta, Hirofumi Hashimoto, Masahito Yamanaka, Masaharu Kan, Kazumichi Ota, Masahito Tamura, Koji Mitsuiki, Yuji Ikeda, Masaharu Nishikido, Akira Miyata, Tadashi Tomo, Shoichi Fujimoto, Tsuyoshi Nosaki, and Yoshinori Oshiro.

Funding

There is no funding for the current study.

All efforts and costs for the 2015 JRDR survey and making the ADR were totally given by JSDT.

Availability of data and materials

  1. 1.

    When anyone wants to use the data and materials from the current manuscript without modifications, all data and materials are freely available with stating “data from JSDT.”


  2. 2.

    When anyone wants to use the data and materials from the current manuscript with modifications, any re-calculations or something, they have to state the following sentence in their publication. “The data reported here have been provided by The Japanese Society for Dialysis Therapy (JSDT). The interpretation and reporting of these data are the responsibility of the authors and in no way should be seen as an official policy or interpretation of the JSDT.”



Authors’ contributions

IM was the director of CRDR in 2016 and directed all of the 2016 JRDR survey. IM and MT finalized the results of the survey and made this manuscript. SN, SO and AW designed the survey sheets and made a special program mounted in MS Excel worksheet for the convenience of self-assessment for the dialysis quality of each dialysis facility. KT, T Hase, T Hama, NH, JH, SG, and TH had the responsibilities on the data analysis. KY and JM had the responsibility on the ethical aspect of the JRDR survey. HN was the president of JSDT in 2015 and checked all the results from the 2015 JRDR survey and approved them to be published. All authors read and approved the final manuscript.

Ethics approval and consent to participate

  1. 1.

    The JSDT registry was approved by the ethical committee of JSDT, the approval no. is 1.


  2. 2.

    The aims of JSDT Renal Data Registry (JRDR) were well explained for the participated dialysis patients through the dialysis facilities.


  3. 3.

    It does not always need to get the documented approval form from the patients because all collected data were existing one and there were no new interventions.


  4. 4.

    The original data had been totally anonymized so there are no risks for deteriorating the privacy of the dialysis facilities and the patients.


  5. 5.

    The data presented in the current manuscript does not contain any images, videos, and voice recording which might have a risk for identifying an individual.



Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Japanese Society for Dialysis Therapy Renal Data Registry Committee, Japanese Society for Dialysis Therapy, Tokyo, Japan
(2)
Department Nephrology, Honcho Yabuki Clinic, 1-6-17 Honcho, Yamagata Yamagata, 990-0043, Japan

References

  1. Nakai S. The history of Japanese Society for Dialysis Therapy Registry. J Jpn Soc Dial Ther. 2010;43:119–52 (in Japanese).View ArticleGoogle Scholar
  2. Masakane I. Recent trends of dialysis therapy in Japan. J Jpn Soc Dial Ther. 2016;49:211–8 (in Japanese).View ArticleGoogle Scholar
  3. Nakai S, Wakai K, Yamagata K, Iseki K, Tsubakihara Y. Prediction of dialysis patients in Japan: based on Japanese Society for Dialysis Therapy Registry. J Jpn Soc Dial Ther. 2012;45:599–613 (in Japanese).View ArticleGoogle Scholar
  4. Japanese society for dialysis therapy. An overview of regular dialysis treatment in Japan, the CD-ROM report (as of 31 December 2014). Tokyo: Japanese society for dialysis therapy; 2015.Google Scholar
  5. Ethical Guidelines for Medical and Health Research Involving Human Subjects. Ministry of Health, Labor, and Welfare and Ministry of Education, Culture, Sports, Science, and Technology, Tokyo. 2017. http://www.lifescience.mext.go.jp/files/pdf/n1443_01.pdf, (last accessed 20 July 2018): in Japanese.
  6. An overview of regular dialysis treatment in Japan. JSDT Renal Data Registry. Japanese Society for Dialysis Therapy, Tokyo. 2018. http://www.jsdt.or.jp/english/2426.html (last accessed 20 July 2018).
  7. Masakane I, Nakai S, Ogata S, et al. Annual dialysis data report 2014, JSDT Renal Data Registry (JRDR). Ren Replace Ther. 2017;3:18. https://doi.org/10.1186/s41100-017-0097-8.View ArticleGoogle Scholar
  8. Masakane I, Nakai S, Ogata S, et al. Annual dialysis data report 2015, JSDT Renal Data Registry. Ren Replace Ther. 2018;4:18. https://doi.org/10.1186/%20s41100-018-0149-8.View ArticleGoogle Scholar
  9. Chapter 11: international comparison, the 2017 USRDS Annual Data Report. Washington: United States Renal Data System, 2017. https://www.usrds.org/2017/view/v2_11.aspx (last accessed 20 July 2018).
  10. Statistic Bureau, Home Page/Population Census, Ministry of Internal Affairs and Communications. http://www.stat.go.jp/data/jinsui/2016np/index.html (in Japanese, last access 27 July 2018).
  11. Nakai S, Iseki K, Itami N, et al. An overview of regular dialysis treatment in Japan (as of December 31, 2010). Ther Apher Dial. 2012;16:483–521.View ArticleGoogle Scholar
  12. Kawanishi H, Akiba T, Masakane I, Tomo T, Mineshima M, Kawasaki T, et al. Standard on microbiological management of fluids for hemodialysis and related therapies by The Japanese Society for Dialysis Therapy 2008. Ther Apher Dial. 2009;13:161–6.View ArticleGoogle Scholar
  13. Mineshima M, Kawanishi H, Ase T, Kawasaki T, Tomo T, Nakamoto H. 2016 update Japanese Society for Dialysis Therapy Standard of fluids for hemodialysis and related therapies. Ren Replace Ther. 2018;4:15. https://doi.org/10.1186/%20s41100-018-%200155-x.View ArticleGoogle Scholar
  14. Hasegawa T, Nakai S, Masakane I, et al. Dialysis fluid endotoxin level and mortality in maintenance hemodialysis: a nationwide cohort study. Am J Kidney Dis. 2015;65:899–904.View ArticleGoogle Scholar
  15. Masakane I, Kawanishi H, Mineshima M, Takemoto Y, Uchono J, Hoshino T, et al. 2011 JSDT standard on the management of endotoxin retentive filter for dialysis and related therapies. Ther Apher Dial. 2013;17:229–40.View ArticleGoogle Scholar
  16. Masakane I, Tsubakihara Y, Akiba T, Watanabe Y, Iseki K. Bacteriological qualities of dialysis fluid in Japan as of 31 December 2006. Ther Apher Dial. 2008;12:454–160.View ArticleGoogle Scholar
  17. Working group committee for the preparation of guidelines for peritoneal dialysis. 2009 edition Japanese society for dialysis therapy guidelines for peritoneal dialysis. Ther Apher Dial. 2010;14:489–504.View ArticleGoogle Scholar
  18. Li PK, Szeto CC, Piraino B, et al. ISPD peritonitis recommendation: 2016 update on prevention and treatment. Perit Dial Int. 2016;36:481–508.View ArticleGoogle Scholar

Copyright

© Japanese Society for Dialysis Therapy 2018

Advertisement
